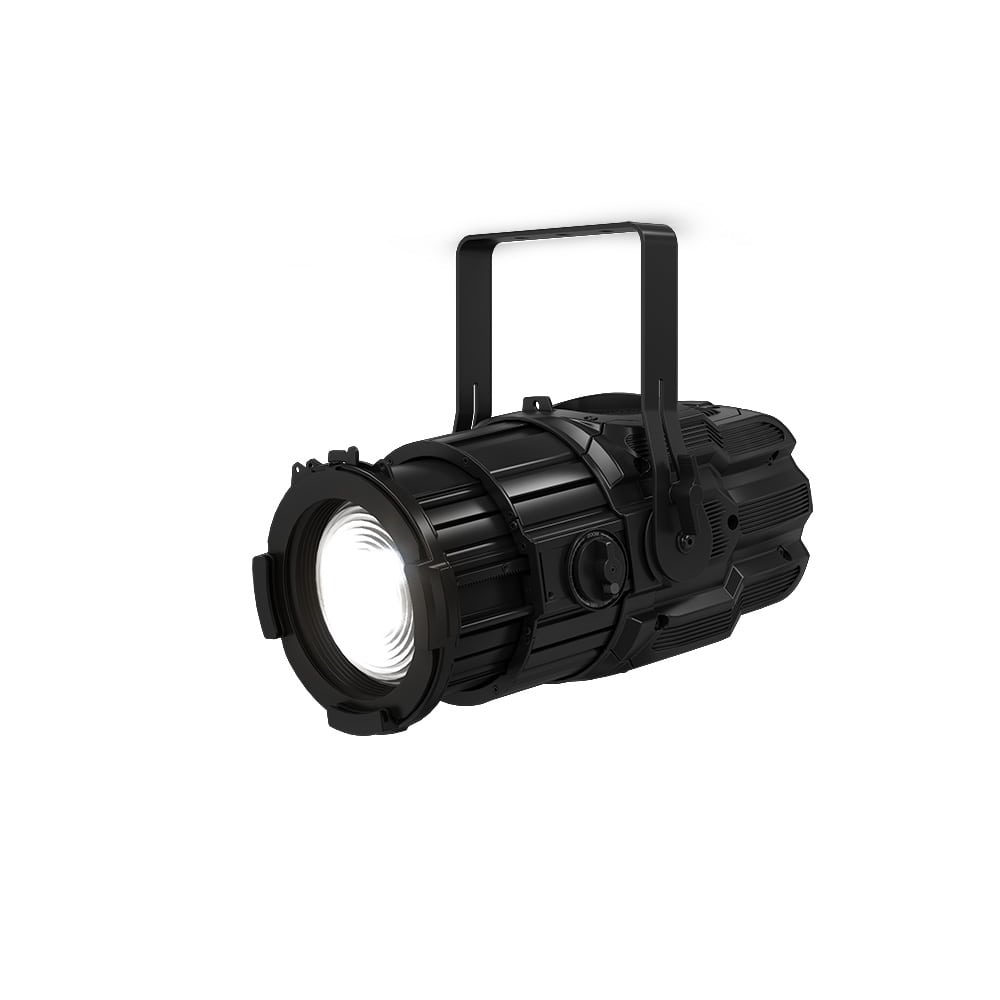

DTS - Tenore 5 WH Fresnel

https://www.avl.be/web/image/product.template/4329/image_1920?unique=6353a84
  • Kleurtemperatuur

Deze combinatie bestaat niet.

Neem contant met ons op

Prijzen exclusief btw
Algemene voorwaarden

​

TENORE 5 WH

The new conventional projector with Fresnel or PC lens,
high-power white source and Italian design.
High performance and low noise.

Highlights

single white source (3000 K - 4000 K - 5700 K)

Ø 175 mm Fresnel or PC lens

Lumens output: up to 16,000 lm

noise management

Fresnel or antihalo lens

Technical data

TENORE 5 WH is the un-conventional evolution to the conventional series of static LED lights.
Thanks its high-power white source, this conventional projector offers maximum versatility and lighting quality with an optimal color rendering up to 95.
With a power consumption of 260W and up to 16,000 lumen output, Tenore 5 WH represents a perfect example of uncompromising professional lighting performance.
To meet the needs of theater and television locations, Tenore allows noise control with 4 fan management modes up to 25dBA.


Output

• Single white 3000 K LED source
- Lumens output: 11,200 lm (Fresnel lens)
- Lumens output: 8,000 lm (PC lens)
- CRI: >95

• Single white 5700 K LED source
- Lumens output: 16,000 lm (Fresnel lens)
- Lumens output: 9,650 lm (PC lens)
- CRI: >90

• Also available with 4000 K LED
- Lumens output: 14,000 lm (Fresnel lens)
- Lumens output: 8,800 lm (PC lens)
- CRI: >95

• LED Lifespan:20,000 hours (70% lumen output)

Optical group

• Ø 175 mm Fresnel lens or Antihalo (PC) lens

• Ø 150 mm Antihalo (PC) lens

• Linear zoom
- 13° - 69° with Frensel lens
- 8° - 46° with PC lens

Dimmer

• PWM Dimming technology

Control

• LCD graphic display + Jog Shuttle

• RDM/DMX 512 protocols

• ‘Standard’, ‘Silent’, ‘Ultra Silent’ and ‘Automatic’ fan modes

• Noise level
- Fan Standard: 30dBA @ 1m (normal operation, 100% power)
- Fan Silent: 26dBA @ 1m (normal operation, 100% power)
- Fan Ultra Silent: 25dBA @ 1m (normal operation, 90% power)
- Automatic: fans adapt to operational status (output power priority)

• Firmware updatable via DTS firmware uploader dongle

DMX

• 4 DMX channels (Default)
- Shutter; Dimmer 16bit; Fixture Control channel

• 1 DMX channels
- Dimmer 8bit

• “Fine” mode
- Dimmer 16bit


 Power supply

• Wide range100/240 Vac 50-60 Hz

• Power consumption: 260W max / 230Vac

• Power Factor: PF >0.94

Connections

• DMX: XLR 5 pole In/Out panel connectors

• Power supply: PowerCON TRUE1 In/Out panel connectors

Circuits protections

Overvoltage and overtemperature circuits protection

Operating temperature

-10° / 45° C

Storage temperature

-20° / 60° C

Physical

• IP20

• Weight:
- FR - 9.5 Kg (20.9 lbs)
- PC - 10.6 Kg (23.4 lbs)

• Finishing: Black

Accessories included

• 1x PowerCON TRUE1 female cable connector (code 0520P066)

• 1x XLR 5 pins female cable connector (code 0508B147)

• 1x XLR 5 pins male cable connector (code 0508B148)

• 1x Filter frame Black finishing - already installed on the projector (code 02M093424.49)

Accessories on request

• Barndoor 4 leaf Black finishing (code 03.TBD07.49)

• Barndoor 8 leaf Black finishing (code 03.TBD09.49)

• Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158)

• Aliscaf clamp for Ø 48-51 mm tube-max load 100 Kg 8code 0521A033)

• Professional G-QUICK clamp - max load 100 Kg (code 0521A037)

• Safety cable 3 x 600 mm - BGV-C1 certified (code 0521A049)
- Single stranded: Max 20 Kg (44 lbs)
- Double stranded: Max 30 Kg (66 lbs)

• Safety cable for Barndoor / FIlterframe - Ø 0,8mm (code 0521A048)

• DTS firmware uploader dongle (code 03.LA.206)
