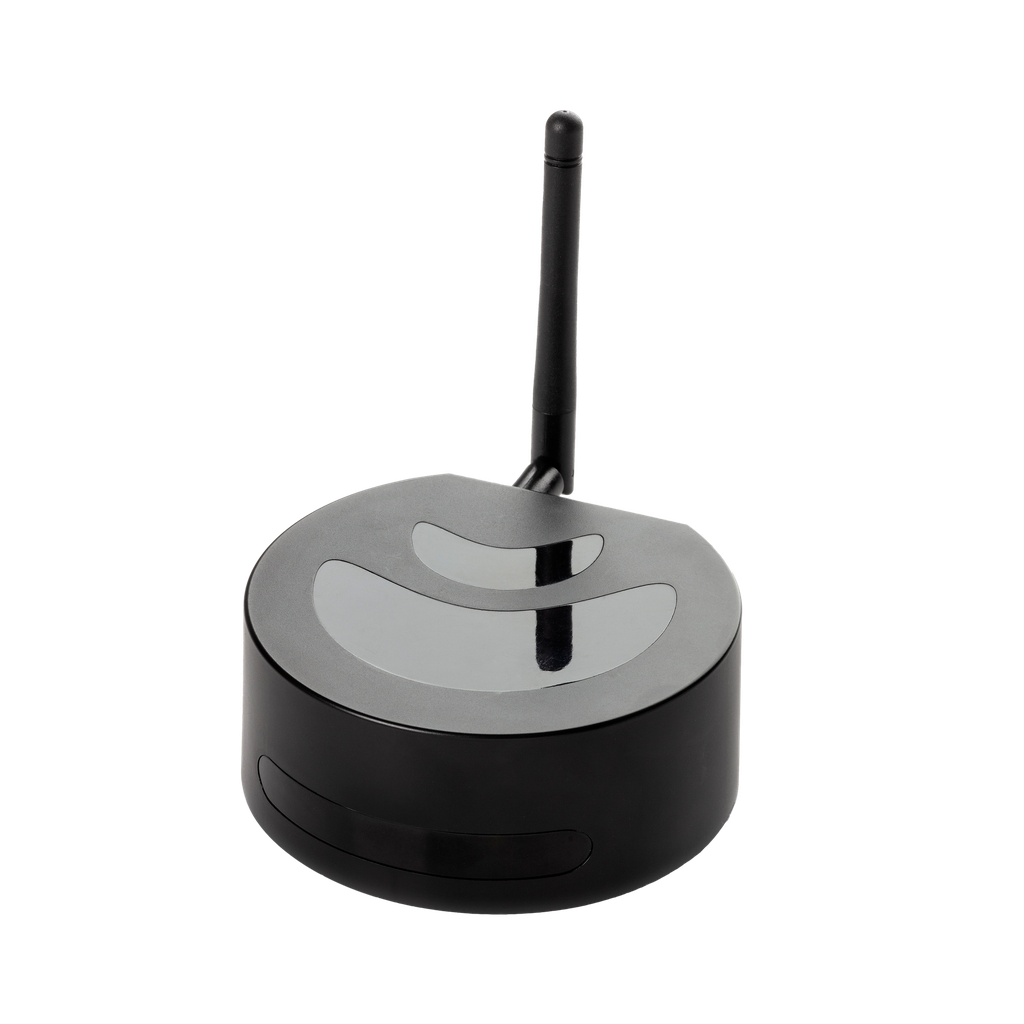

LumenRadio - W-DMX Orb TX - Wireless DMX Transmitter

Wireless DMX Transmitter

Boom, instant wireless control!

Orb gives you cable-free control over your lighting set-up, so no more running cables from your controller to your fixtures. Available as a wireless DMX transmitter or receiver.

Light it up like a pro!

Orb gives you cable-free control over your lighting set-up so no more running cables from your controller to your fixtures. Available as a transmitter or a receiver – either way it’s plug and play. Simply connect the transmitter to your controller and the receiver to your fixtures… and boom, instant wireless control!

And you get the same rock-solid W-DMX performance loved by the lighting professionals.

Experience Wireless DMX

Orb uses W-DMX technology – an incredibly reliable wireless alternative to the DMX cable.

It is also completely compatible with other W-DMX and LumenRadio CRMX products so as your business grows, you don’t have to replace everything all at once. Start with Orb and Stick and later use them together with more advanced products like LumenRadio’s Aurora or Stardust.

TECHNICAL SPECIFICATIONS

• DMX Transmitter (TX) or Receiver (RX)
• Power supply DC: USB-C 5 VDC (power supply included)
• Dimensions (W x H x D): 99 x 97 x 43 [mm]
• Antenna connector: RP-SMA
• Frequency range: 2402 – 2480 MHz (ISM band)
• Max. RF output power: 35 mW
• Supported protocols: DMX-512A
• RF protocols (TX): W-DMX G3
• RF protocols (RX): CRMX/CRMX2 & W-DMX G3/G4/G4S/G5
