RDMRelay

DIN rail mounted DMX/RDM 4-channel Relay.

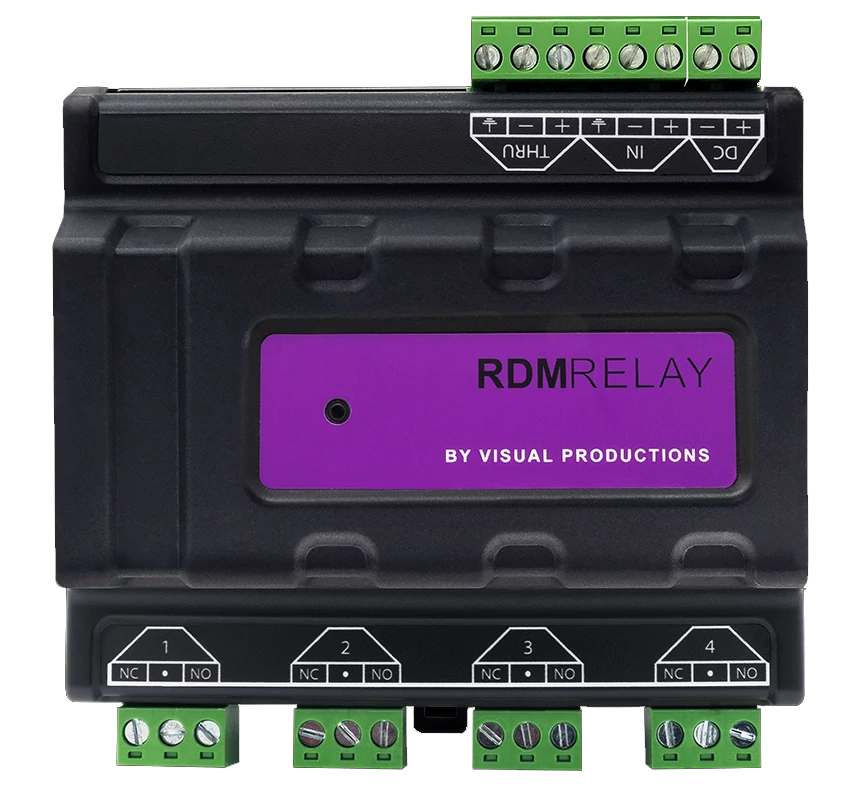

The RdmRelay is a DIN rail mounted device with 4 relays. Controllable via DMX and RDM, the RdmRelay is a powerful tool in any lighting installation.

Remote Device Management

The device can be set by RDM. This allows the start address to be set via any RDM commissioning tool. The relays are controlled via four DMX channels.

Heavy Duty Relays

The RdmRelay is equipped with four heavy duty relays. The relays can switch 110V/230V equipment up to 16 Amps per relay. This is ideal for controlling non-DMX equipment or switching off a lighting installation.

Specifications

• 4 Relays 16A/250V each
• USITT DMX512-A (ANSI E1.11)
• RDM (ANSI E1.20)

• Screws connectors
• DIN Rail mounting
• Power consumption 9-24V DC 5W (optional external PSU)
• Dimensions 104 x 106 x 59 mm
• Weights 120 gram (0.26 lbs)
