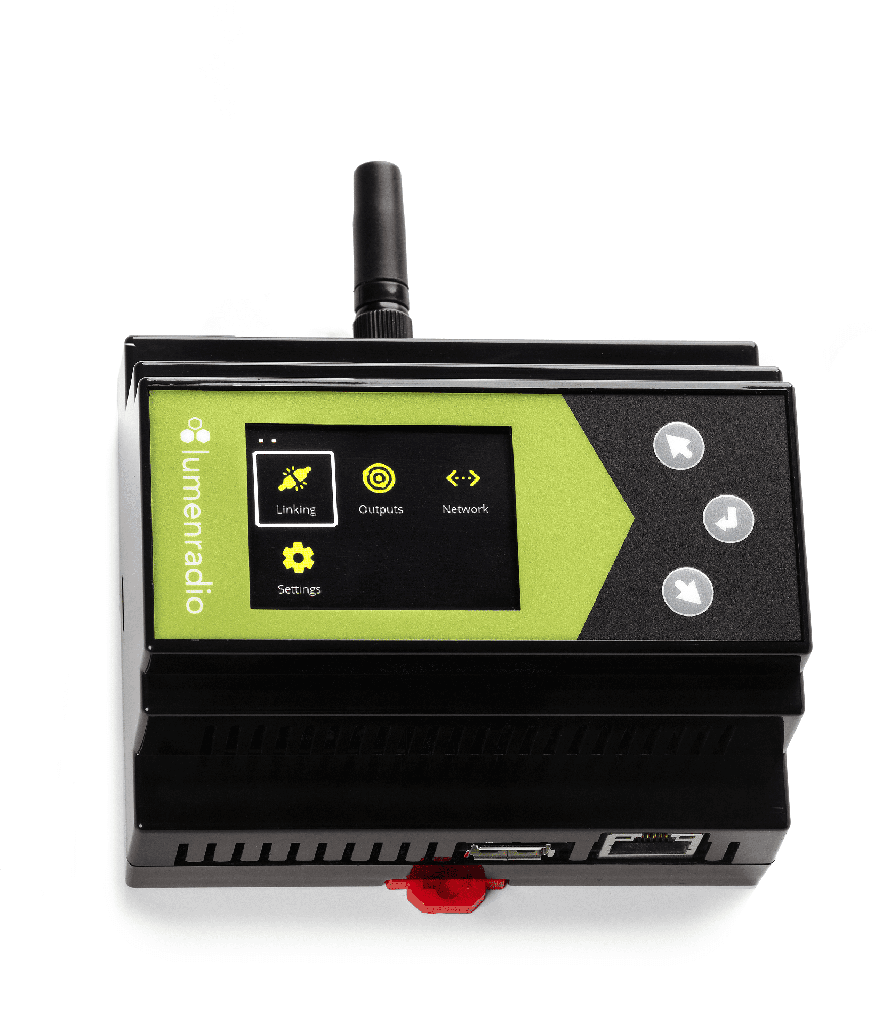

LumenRadio Galileo MAX DIN-rail transmitter with Wifi & ethernet

Galileo MAX makes architectural lighting projects easier and cheaper than ever before by providing wireless DMX in a modular, installation-friendly form.

- Set up, monitor and check status remotely
- Suitable for all indoor and outdoor installations
- Reliable wireless technology

FEATURES

Multiple universe wireless DMX transmitter
Using a specially designed backboard, Galileo MAX can be connected to 3 standard Galileo transmitters to expand control to 4 universes and up to 8 if the fixtures have CRMX2 (to be released during 2024).

Cover large-scale projects
Build a network using one Galileo MAX linked to an unlimited number of receivers – either fixtures from our OEM partners or LumenRadio products

Reliable wireless technology
Based on LumenRadio’s trusted CRMX technology, you get a range and performance which allows your creativity to take center stage.

Remote monitoring
Connect to Galileo MAX remotely and use your browser to create addresses, complete set-up and perform system healthchecks.

Flexible mounting
By using either DIN rail cabinets or certified enclosures (IP65 or better), Galileo MAX is suitable for all indoor and outdoor installations, making it perfect for all types of architectural lighting projects.

TECHNICAL FEATURES

• Art-Net and streaming ACN support via Ethernet
• DMX512-A and RDM support
• 5ms fixed latency
• 128 bit encryption
• Radio link range covering hundreds of meters
• Quick and easy Bluetooth configuration via CRMX Toolbox app
• Compatible with all CRMX and W-DMX devices

SPECIFICATIONS

Power supply: 12-24 VDC +/- 10%
Max. power consumption: 8.5W
Self-healing fuse: Yes
Rated wire size: 0.2 – 1.5mm2, 24-16 AWG
IP rating: IP X0
Dimensions (W x H x D): 107 x 93 x 58.7 [mm]
Weight: 195g
Antenna connector: RP-SMA
Operating temp. range: -20 to +55°C
Storage temp. range: -30 to +80°C
Humidity: 0–90% non-condensing
Frequency range: 2402 – 2480MHz (ISM band), 5170 – 5330MHz (ISM band), 5490 – 5590MHz (ISM band)
Max. RF output power: 100mW (280 mW is US) at 2.4GHz, 50mW at 5GHz
Supported protocols: Art-Net, Streaming ACN, RDM
Supported RF protocols: CRMX, CRMX2, W-DMX G3 & G4S
Ethernet: 10/100 Mbps via RJ45 connector
PoE: IEEE 802.3af
USB: Version 2.0 (only for software update)
