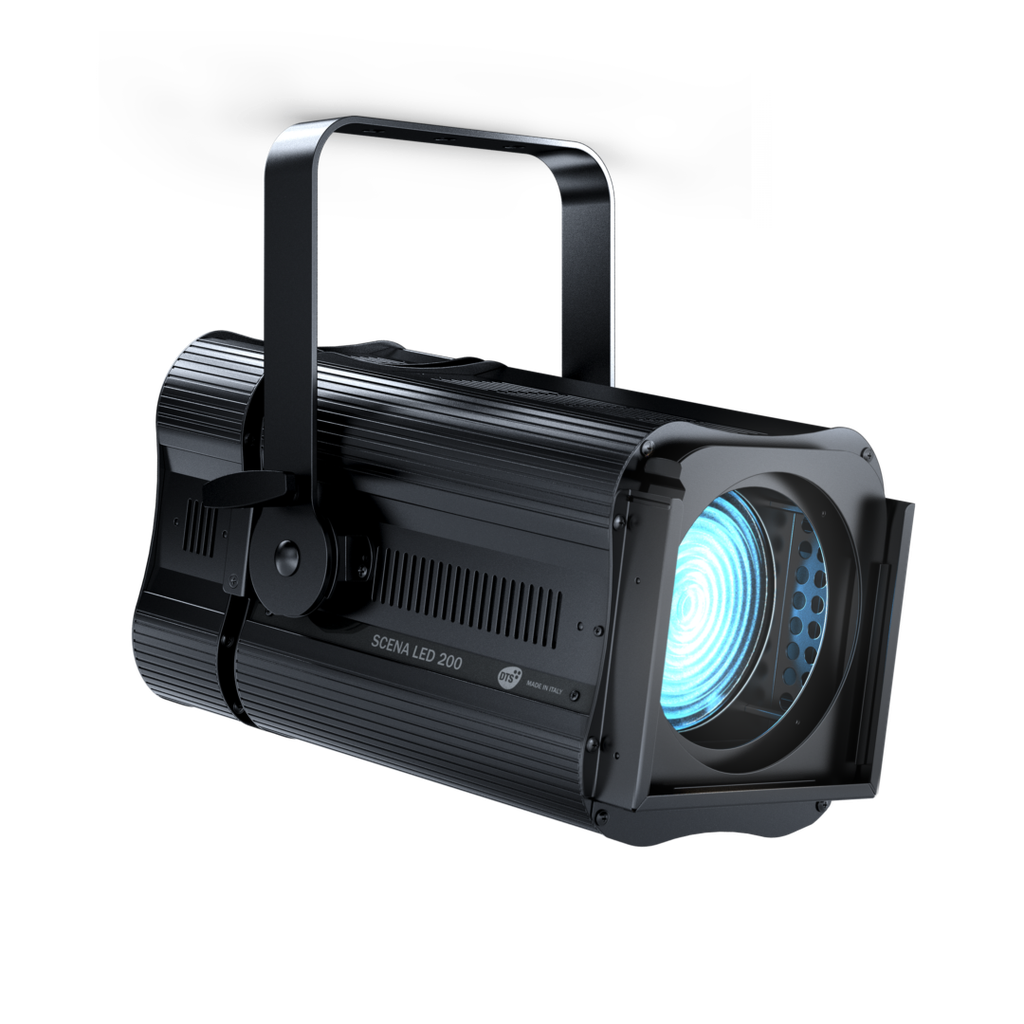

DTS - SCENA LED Fresnel 200 MZ FC
Interne referentie:
03.TS055.46.F
high-power RGBW LED
adjustable color temperature
(2700 K - 8000 K)
linear or motorized zoom
flicker free projection
noiseless operation
DMX / RDM and manual control
low power consumption
Technical data
SCENA LED 200 FC is a high power LED projector in a very compact and lightweight size and quipped with a high efficiency 200 W RGBW LED source, coupled with a 14° - 60° manual or motorized zoom. This layout makes the unit particularly suitable for theatres, TV studios, exhibitions, events and any application requiring an endless palette of colors and a DMX / RDM remote management of zoom, dimming and shutter functions.
| Output • Single high-power Full Color (RGBW) LED • LED lifespan: 50,000 hours (70% lumen output) Optical group• Ø 150 mm Fresnel lens • Zoom • 28 gel filters macros • Wide palette of pure uniform whites • Variable linear color temperature (2700 K – 8000 K) Control• DMX 512 / RDM or Manual control • Multi-function 4-digit 7-segment LED display + 4 soft keys • Firmware updatable via DTS firmware uploader dongle DMX• 10 DMX channels (default) • 4 DMX channels • 6 DMX channels • “Fine” mode Power supply• Electronic Wide-range 100-240Vac 50-60 Hz • Power consumption: 200 W max • Power Factor: PF >0.94 Connections• Power supply: PowerCON TRUE1 In/Out panel connectors • DMX: XLR 5-pole In/Out panel connectors | Circuits protections Overvoltage circuit protection and overtemperature circuit protection Operating temperature-10° / 40° C Physical• IP20 • Weight: 9.4 Kg (20.7 lbs) • Finishing: Black Accessories included• 1 x PowerCON TRUE1 female cable connector (code 0520P066) • 1 x XLR 5 pins female cable connector (code 0508B147) • 1 x XLR 5 pins male cable connector (code 0508B148) • 1 x Filterframe Black finishing - already installed on the projector (code 02M093278.49) Accessories on request• Barndoor Black finishing (code 03.TBD04) • Universal Hook Clamp - Max load 40 Kg - 88 lbs (code 0521A047) • Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158) • Flightcase for 6 units (code 0521C075) • Safety cable - 3 x 600 mm - max. capacity load 30 Kg (code 0521A010) • DTS firmware uploader dongle (code 03.LA.206) |
